Product Overview

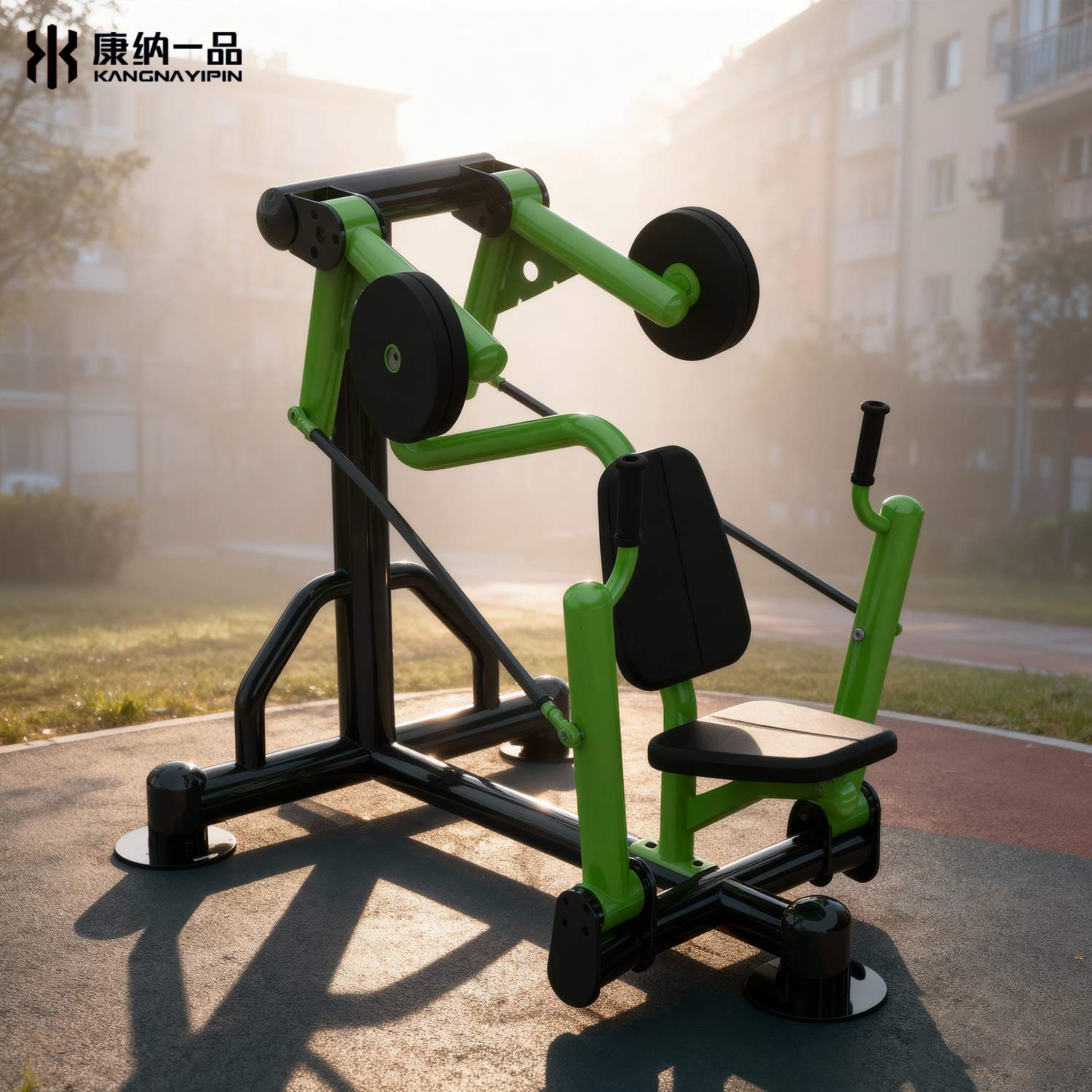

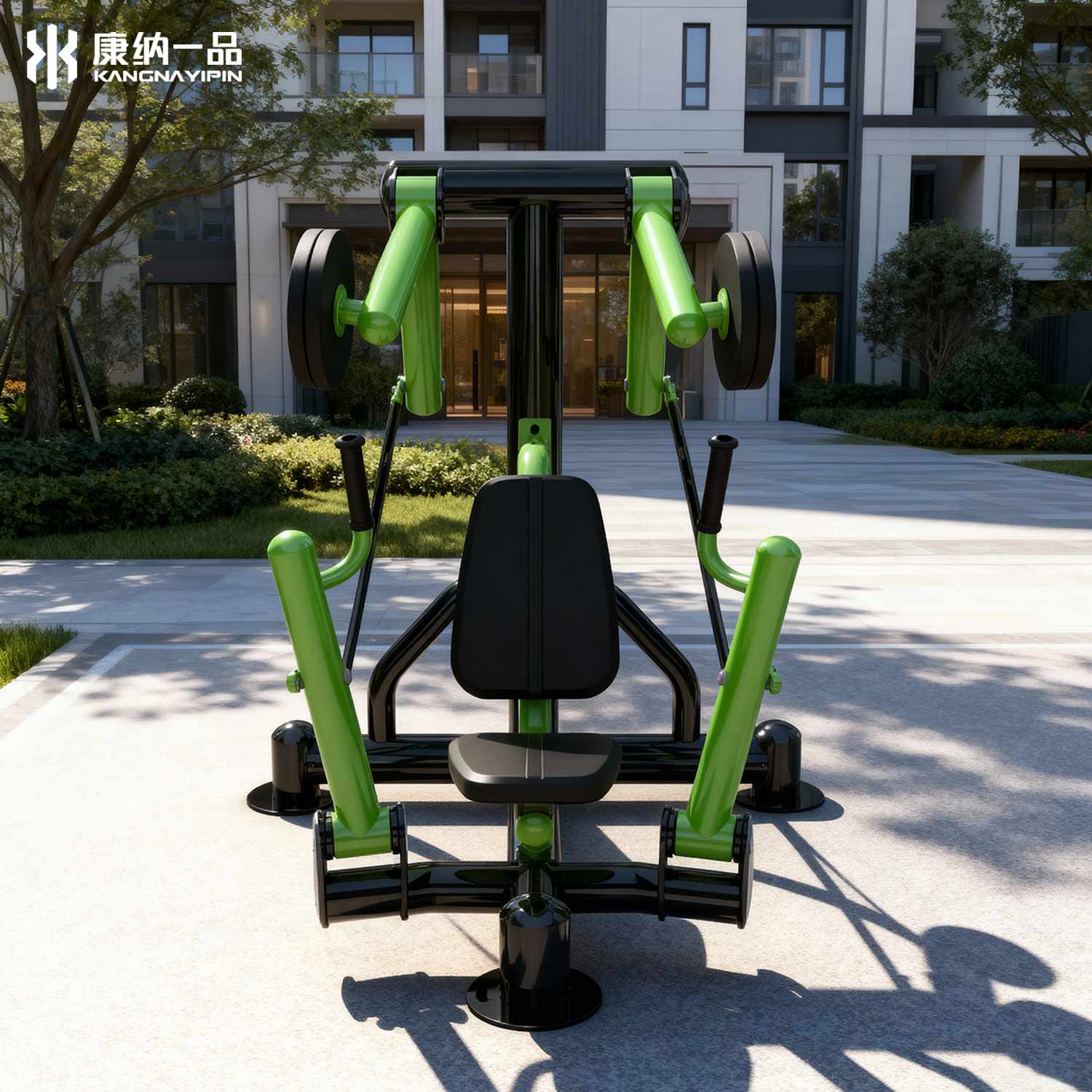

The KN-954 SEATED PRESS MACHINE is a premium outdoor fitness equipment specifically engineered for comprehensive upper body training with a focus on pressing movements. Designed for public parks, schools, community centers, residential complexes, and commercial fitness installations, this professional-grade equipment offers an effective chest, shoulder, and arm workout while being accessible to users of all fitness levels.
Built with robust construction and weather-resistant materials, the KN-954 is ideal for year-round outdoor use in various climatic conditions.
Key Functions & Benefits
Primary Training Effects
- Upper Limb Strength Enhancement: Develops strength in the arms, shoulders, and chest through controlled pressing movements
- Shoulder Girdle Development: Strengthens the muscles surrounding the shoulder joint for improved stability
- Core Engagement: Activates chest, abdomen, and back muscles during pressing exercises
- Joint Stability: Improves upper-limb joint stability through controlled resistance movements
- Coordination & Balance: Enhances physical coordination and overall body balance
Health Benefits
- Improves cardio-respiratory endurance with regular use
- Supports rehabilitation and recovery programs
- Suitable for senior fitness programs
- Encourages outdoor physical activity and community wellness
- Excellent for improving posture and upper body strength
- Helps strengthen the pushing muscles of the upper body
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | KN-954 |

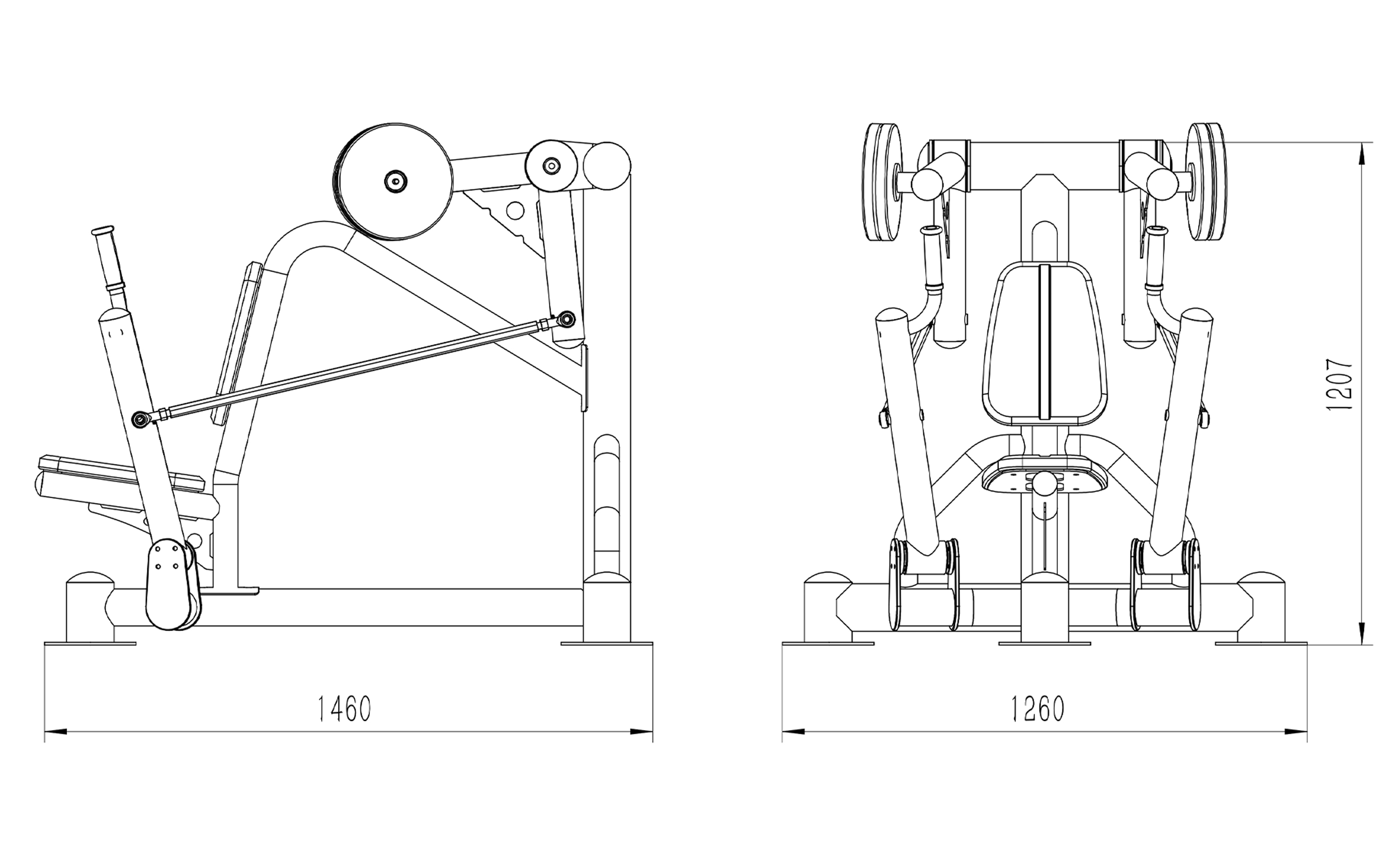

| Dimensions | 146×126×121 CM |
| Net Weight | 117 KGS |
| Gross Weight | 122 KGS |
| User Capacity | Single user |
| Age Range | 14+ years |
Premium Construction
Our devices are manufactured using high-quality welded steel for maximum durability and safety. Every component is designed to withstand intensive outdoor use and harsh weather conditions.
Materials & Components
- Main Frame: Heavy-duty welded steel tubing (minimum wall thickness 2.5mm)
- Seats & Backrests: UV-resistant HDPE (High-Density Polyethylene) board
- Foot Treads: Non-slip aluminum alloy with textured surface
- Hardware: Marine-grade stainless steel fasteners
- Bearings: Sealed, maintenance-free industrial bearings
- Handles: Ergonomic rubber-coated grips for comfort and safety
- Press Arms: Dual-action press arms with smooth movement mechanism
Advanced Surface Treatment
To ensure superior corrosion protection and a long-lasting finish, all devices undergo our comprehensive 5-stage surface treatment process:
- Degreasing: Chemical cleaning to remove oils and contaminants
- Shot Blasting: High-pressure SA2.5 grade surface preparation
- Zinc Galvanizing: Hot-dip galvanizing for primary corrosion protection
- Primer Coating: Anti-corrosion primer layer (60-80 microns)
- Powder Coating: UV-resistant polyester topcoat (80-100 microns)
Color Options
- Standard Colors: Yellow (RAL 1018), Grey (RAL 7004), Blue (RAL 5015), Green (RAL 6018)
- Custom Colors: Available upon request with RAL color code specification
- Coating Durability: Minimum 5-year outdoor warranty on finish
Professional Installation
The outdoor gym equipment is designed for straightforward installation:
Installation Features
- Secure anchor bolt foundation mounting system
- All anchors, bolts, and necessary hardware included
- Comprehensive installation manual with diagrams
- QR code access to video installation guides
Installation Options
- DIY installation with provided instructions
- Professional installation service available
- Installation time: Approximately 1-2 hours per unit
Foundation Requirements
- Concrete base specifications provided in installation package
- Minimum concrete strength: C25/30
- Recommended safety zone clearance: 2 meters around equipment
Shipping & Delivery
Packaging
- Fully assembled main frame (where possible)
- Individual component packaging for easy handling
- Protective foam and cardboard packaging
- Weather-resistant outer wrapping
Delivery Terms
- EXW, FOB, CIF, and DDU terms available
- Delivery time: 30-45 days from order confirmation
- Full container load (FCL) and less than container load (LCL) options
- Professional freight forwarding partnerships worldwide
Certifications & Standards
Our outdoor fitness equipment meets or exceeds international safety and quality standards:
- EN 16630:2015 - European safety standard for permanently installed outdoor fitness equipment
- ISO 9001:2015 - Quality management system certification
- ISO 14001:2015 - Environmental management system certification
- CE Marking - European conformity certification
- SGS Testing - Third-party quality verification
Warranty & After-Sales Support
As an experienced manufacturer with over 15 years of expertise in outdoor fitness equipment production, we stand behind the quality of our products:
Warranty Coverage
- Main Frame: 10-year structural warranty
- Moving Parts: 3-year warranty
- Surface Finish: 5-year warranty against peeling and fading
- Hardware: 2-year warranty
Support Services
- Technical support via email, phone, and video call
- Spare parts availability for 10+ years
- Installation troubleshooting assistance
- Maintenance guidance and documentation
Why Choose KN-954?
- Commercial-Grade Quality at competitive pricing
- Low MOQ - Minimum order quantity of just 1 unit
- Comprehensive Warranty - Up to 10 years on main frame
- Global Shipping - Delivered to 80+ countries worldwide
- Custom Options - Colors, logos, and configurations available
